ATDM-0604a Digital Smart Mixer DSP 6in 4out with AT-Link

$1,545.60 $1,288.00

$1,288.00 (excl. GST) $1,403.92 (incl. GST)

  • 6 mic/line inputs, 1 stereo input

  • 2 balanced, 1 unbalanced stereo outputs

  • USB audio input/output

  • AT-Link for ES954 microphone control

  • Advanced DSP with echo/noise cancellation

  • Web/app-based configuration

  • Compatible with Barco ClickShare

Add to Wishlist
Vendor: Audio-Technica
SKU:
Categories: Audio-Technica
Description

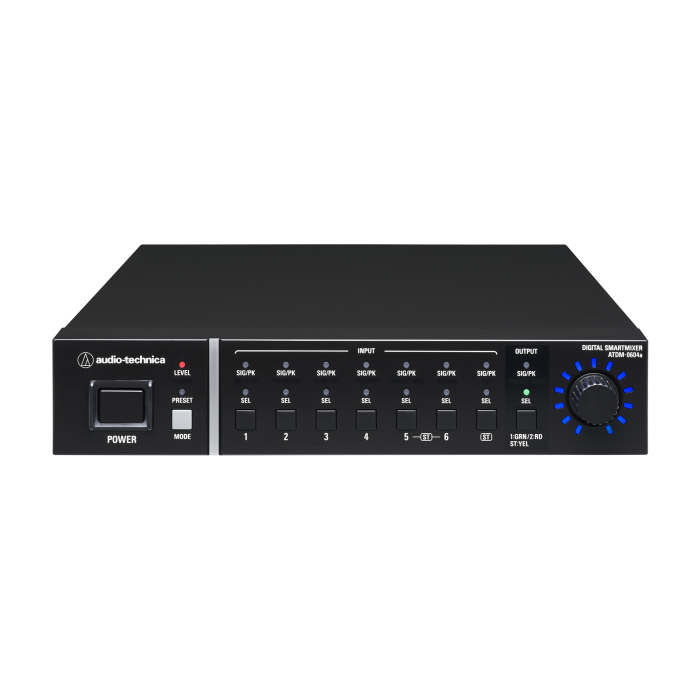

The ATDM-0604a Digital Smart Mixer is a versatile 6-input, 4-output DSP solution designed for professional audio applications, including conferencing, presentations, and live events. Engineered for seamless integration with Audio-Technica’s ES954 hanging microphone arrays (required for steering capture), it features Audio-Technica’s proprietary AT-Link Audio Network for enhanced connectivity with compatible devices. This compact, rack-mountable mixer delivers superior audio quality with advanced digital signal processing, making it ideal for corporate, educational, and house-of-worship environments.

Key Features

  • Flexible Input/Output Configuration: Offers 6 mic/line inputs and 1 unbalanced stereo input, paired with 2 balanced outputs and 1 unbalanced stereo output, plus USB audio (1 stereo in/out) for versatile connectivity.

  • SmartMixer Technology: Selectable gain sharing or gate mode optimizes audio clarity for multi-mic setups.

  • Advanced DSP Capabilities: Includes high-performance echo cancellation, noise cancellation assignable to any output, 4-band EQ, compressor/de-esser per input, and 12-band PEQ, compressor, and limiter per output.

  • Feedback Suppression: Eight 8-band feedback suppressors assignable to inputs or outputs ensure clear audio without unwanted feedback.

  • AT-Link Integration: Dedicated terminals for compatibility with Audio-Technica LINK-enabled products, including remote LED control of ES954 microphone arrays via GPO.

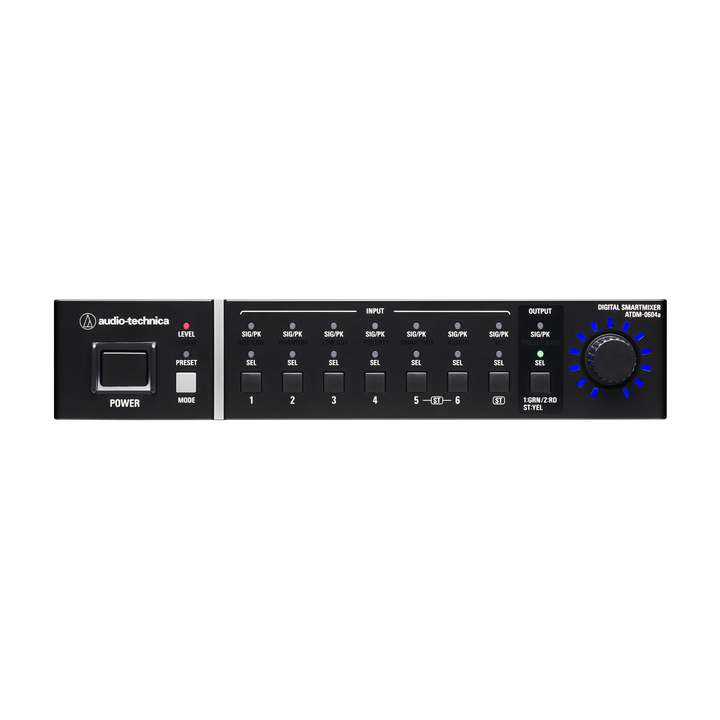

  • User-Friendly Configuration: Front-panel controls for standalone use, plus advanced settings via web browser or Smart Mixer Manager app for detailed customization.

  • IP-Based Remote Control: Supports external control via IP protocol for seamless integration into networked AV systems.

  • Barco ClickShare Compatibility: Certified for use with Barco ClickShare Conference systems, enhancing wireless presentation capabilities.

  • High-Quality Audio Performance: Boasts a 110 dB dynamic range, 90 dB S/N ratio, and low total harmonic distortion (0.03% or less) for pristine sound reproduction.

  • Robust Design: Compact (8.6" W × 14" D × 1.7" H), lightweight (4.2 lbs), and built for reliable operation in temperatures from 0 to 40°C.

Technical Specifications

  • Frequency Response: 20 Hz to 20 kHz (±1.0/-2.0 dB, depending on input level).

  • Maximum Gain: 64 dB.

  • Input Referred Noise: -126 dBu or less (Rs = 150 ohm, DIN).

  • Phantom Power: +48V DC for condenser microphones.

  • A/D and D/A Converters: 24-bit resolution with 115 dB dynamic range.

  • Power Supply: 100–240V AC (50/60 Hz), 17W consumption.

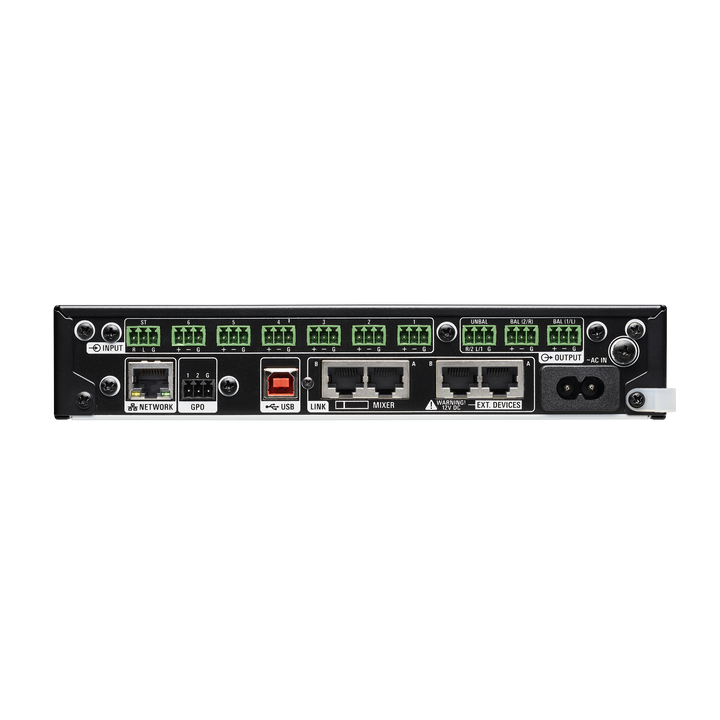

  • Connectors: Euroblock for analog inputs/outputs and GPO; RJ-45 for IP protocol, AT-Link, and network; USB Type B for audio.

  • Accessories: Includes Euroblock connectors, rack-mount hardware, power cable, and rubber feet.

The ATDM-0604a is a powerful, flexible, and easy-to-use DSP mixer, delivering professional-grade audio processing and seamless integration for modern AV systems.
