Overview
Designed for the modern office and its workflow, our printer is crafted with rich utillites and productivity functions that enhance daily operations.

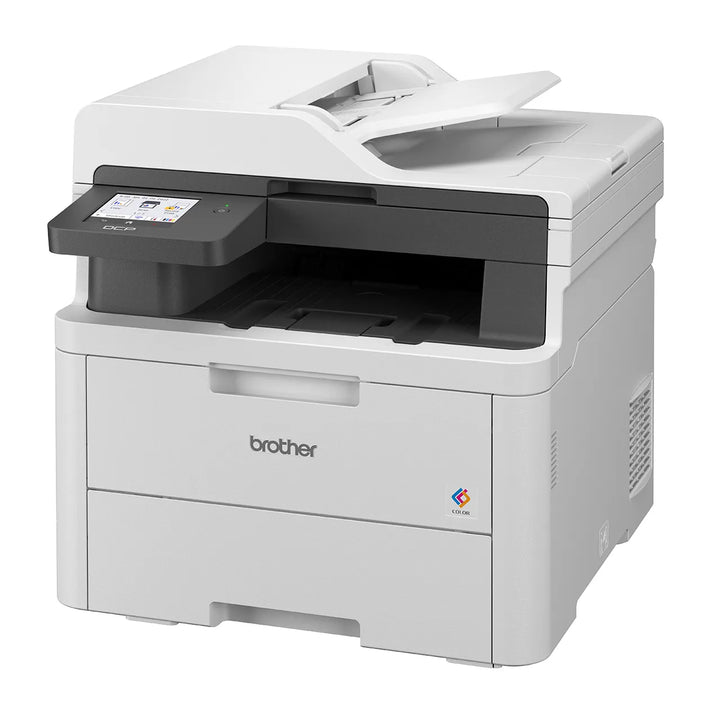

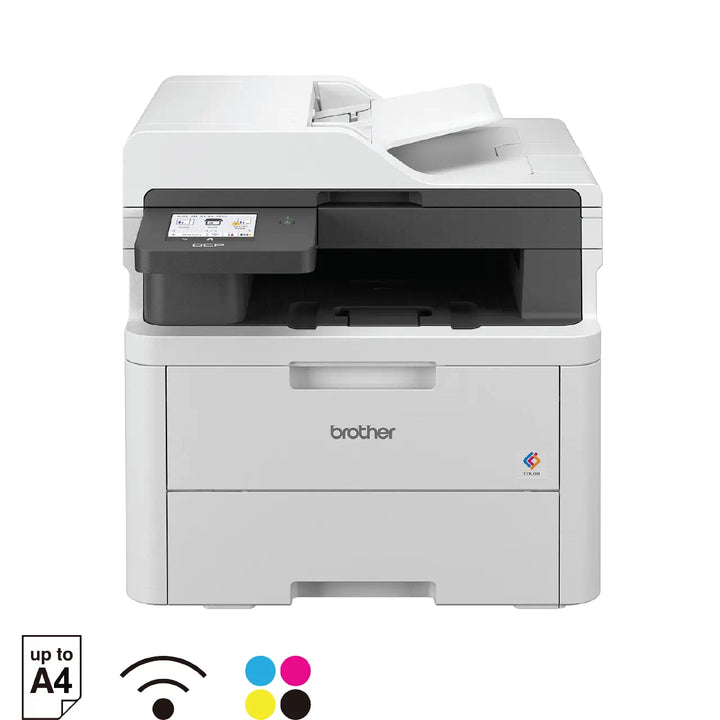

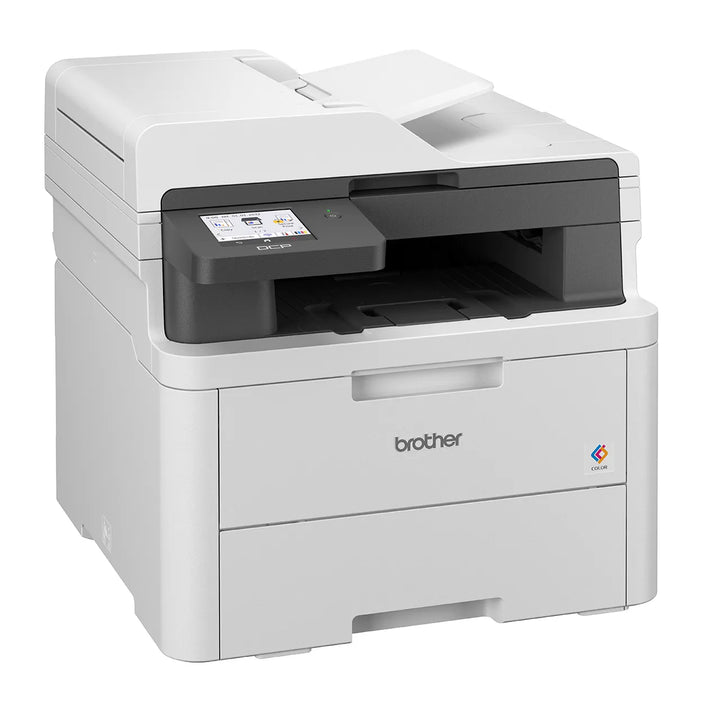

Professional printouts that are vibrantly accurate. Utilising Brother’s leading LED technology, colours produced by the DCP-L3560CDW are crisp and sharp, with gradients being smooth and natural. Reduce the guesswork and excessive reprints as documents produced are as accurate as how you calibrate them on screen.
Print so much more at a fraction of the cost for greater value overall. With Brother’s toners, the new DCP-L3560CDW offers incredibly efficient print usage rates that reduce the need for frequent replacements. Print costs are averaged out over a longer period of time as well, keeping Total Cost of Ownership (TCO) low. * Approximate cartridge yield is declared in accordance with ISO/IEC 19798.
Speed when you need it. Both colour and monochromatic documents print at impressive output speeds on various supported types of media, such as up to 26ppm for A4. Have documents ready in hand on time, as productivity is improved.
Up to 50% less paper waste is created while creating documents, thanks to automatic 2-sided printing, saving costs in the long run
Print documents quietly with Quiet Mode. Ready Mode can also be used to ensure that it runs silently on while standby.
Specifications
Basic Specs
| Functions |
Print, Scan, Copy |
| Printer Type |
Laser Printer |
| Product Dimensions (Width X Depth X Height) |
410 mm × 444 mm × 401 mm |
| Weight |
20.2 kg |
| Print Speed |
Up to 26 (Mono) / Up to 26 (Colour) ppm (A4) Up to 27 (Mono) / Up to 27 (Colour) ppm (Letter) |
| Paper Type |
Plain Paper, Thin Paper, Thick Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Glossy Paper |
| Paper Size |
A4, Letter, B5 (JIS) ,B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Folio, Mexico Legal, India Legal, 16K (195x270mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch |
| Maximum Paper Capacity |
Up to 250 sheets of 80 gsm plain paper |
Print
| Resolution |
600 x 600 dpi, 2,400 dpi class (600 x 2400) quality |
| 2-Sided (Duplex) - Printing Paper Type |
Plain Paper, Thin Paper, Recycled Paper |
| 2-Sided (Duplex) - Paper Size |
A4 |
Paper handling
| Tray #1 - Maximum Paper Capacity |
Up to 250 sheets of 80 gsm plain paper |
| Manual Feed Slot - Maximum Paper Capacity |
Up to 1 sheet |
| Automatic Document Feeder (ADF) Maximum Paper Capacity |
Up to 50 sheets of 80 gsm plain paper |
| Paper Output |
Up to 150 sheets of 80 gsm plain paper (face-down delivery to the face-down output paper tray) 1 sheet (face up delivery to the face up output tray) |
Copy
| Colour/ Monochrome |
Yes Yes |
| Enlarge/ Reduce |
25 to 400% (in increments of 1%) |
| Resolution |
Up to 600 x 600 dpi |
Scan
| Resolution - Interpolated |
Up to 19200 x 19200 dpi (interpolated) (Windows Only) |
| Resolution - Scanner Glass |
Up to 1200 x 1200 dpi |
| Resolution - Automatic Document Feeder (ADF) |
Up to 600 x 600 dpi |
Connectivity
| Connectivity |
Hi-Speed USB2.0, Ethernet 10Base-T/100Base-TX/1000Base-T, IEEE 802.11a/b/g/n (Infrastructure Mode), IEEE 802.11a/g/n (Wi-Fi Direct) |
Network
| Wireless Network Security |
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only. |
Display & Memory
| Display Type |
8.76cm (3.5") Colour Touchscreen LCD |
| Memory Capacity |
512 MB |
Operation
| Power Source |
220 - 240 V AC 50/60 Hz |
| Power Consumption - Ready |
Approximately 70 W |
| Power Consumption - Sleep |
Approximately 10 W |
| Power Consumption - Power Off |
Approximately 0.04 W |
| Noise Level |
47 dB(A) |
Supported Operating Systems
| Supported OS |
Windows® Server 2012, Server 2012 R2, 10, Server 2016, Server 2019, Server 2022, 11 |
Software and Apps
| Included software |
BRAdmin Professional 4, IPrint&Scan |
| Mobile Apps |
Mobile Connect |
