Overview

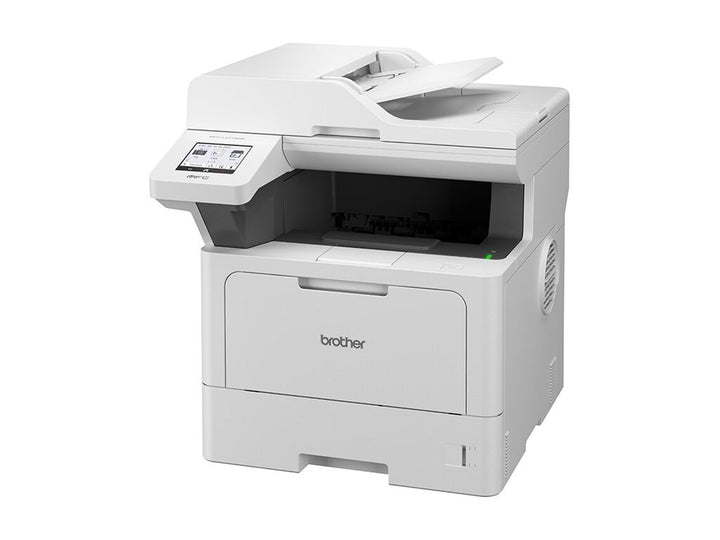

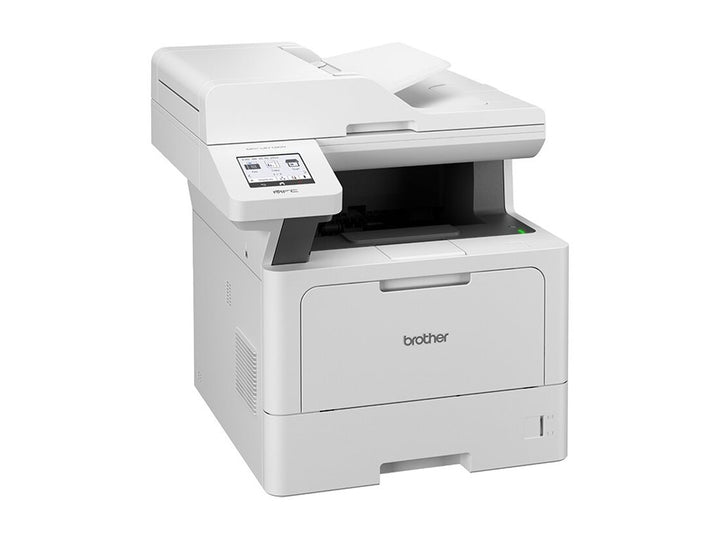

The Brother MFC-L5710DN is a versatile 4-in-1 monochrome laser printer designed for office environments. It offers print, scan, copy, and fax functionalities with automatic duplex printing and network connectivity.
Tackle ad-hoc print jobs easily with a print speed of up to 48 ppm (A4/LTR) and an impressive First Print Out Time of under 6.7 seconds.
Maximise performance with high paper input capacities of up to 1,040 sheets and save time on reloading.
Features such as Secure Function Lock and Secure Print safeguard print jobs and other functions against unauthorised user access.
Each toner cartridge supports more than 18,000 pages·1 worth of prints, reducing overall printing costs and maintenance downtime.
Utilises double-sided printing and scanning, saving on total operating costs.
Specifications
Basic Specs
| Functions |
Print, Scan, Copy, Fax |
| Printer Type |
Laser Printer |
| Product Dimensions (Width X Depth X Height) |
417 mm × 461 mm × 448 mm |
| Weight |
14.9 kg |
| Print Speed |
Up to 48 (A4) / Up to 50 (Letter) ppm |
| Paper Type |
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env.Thin, Env.Thick |
| Paper Size |
A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch |
| Maximum Paper Capacity |
Up to 1,390 sheets of 80 gsm plain paper (with Added Optional Trays) |
Print
| Resolution |
Up to 1200 x 1200 dpi |
| 2-Sided (Duplex) - Printing Paper Type |
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper |
| 2-Sided (Duplex) - Paper Size |
A4, Letter, Legal, Mexico Legal, India Legal, Folio (Paper sizes other than A4 are supported only in some countries.) |
Paper handling
| Tray #1 - Maximum Paper Weight |
60 to 163 gsm (16 to 43 lb) |
| Tray #1 - Maximum Paper Capacity |
Up to 250 sheets of 80 gsm plain paper |
| Tray #1 - Paper Size |
A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper) |
| Tray #2 - Maximum Paper Weight |
60 to 120 gsm (16 to 32 lb) |
| Tray #2 - Maximum Paper Capacity |
LT-5505: Up to 250 sheets of 80 gsm plain paper LT-6505: Up to 520 sheets of 80 gsm plain paper |
| Multi-purpose Tray - Maximum Paper Weight |
60 to 230 gsm (16 to 60 lb) |
| Multi-purpose Tray - Paper Size |
Width: 69.8 to 215.9 mm (2.75" to 8.5") Length: 127 to 355.6 mm (5" to 14") Envelope: COM-10, DL, C5, Monarch |
| Multi-purpose Tray - Maximum Paper Capacity |
Up to 100 sheets of 80 gsm plain paper |
| Automatic Document Feeder (ADF) Maximum Paper Capacity |
Up to 50 sheets of 80 gsm plain paper |
| Paper Output |
Up to 150 sheets of 80 gsm plain paper (face-down delivery to the face-down output paper tray) 1 sheet (face up delivery to the face up output tray) |
Copy
| Colour/ Monochrome |
N/A Yes |
| Enlarge/ Reduce |
25% to 400% (in increments of 1%) |
| Resolution |
Up to 1200 x 600 dpi |
Scan
| Colour / Monochrome |
Yes / Yes |
| Resolution - Interpolated |
Up to 19200 x 19200 dpi (interpolated) (Windows Only) |
| Resolution - Scanner Glass |
Up to 1200 x 1200 dpi |
| Resolution - Automatic Document Feeder (ADF) |
Up to 600 x 600 dpi |
| Document Scanning Width / Length - Scanner Glass |
Width: Up to 216 mm Length: Up to 300 mm |
| Document Scanning Width / Length - Automatic Document Feeder (ADF) |
Width: 105 to 215.9 mm Length: 147.3 to 355.6 mm |
| 1-Sided (Simplex) - Scan Speed |
Up to 28 (Mono) / Up to 20 (Colour) ipm |
| 2-Sided (Duplex) - Scan Speed |
Up to 56 (Mono) / Up to 40 (Colour) ipm |
Fax
| Compatibility |
ITU-T Super G3 |
| Modem Speed |
33.6 Kbps |
| Memory Transmission |
Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG) |
| Fax Forwarding |
Yes |
| Out of Paper Reception |
Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG) |
| PC Fax - Sending |
Yes (Mono) |
| PC Fax - Receiving |
Yes (Mono) |
Connectivity
| Connectivity |
Hi-Speed USB2.0, 10Base-T/100Base-TX/1000Base-T |
Network
| Wireless Network Security |
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only. |
| Wireless Setup Support Utility - WPS |
Yes |
Display & Memory
| Display Type |
3.5" Colour Touchscreen LCD |
| Memory Capacity |
1 GB |
Operation
| Power Source |
220 - 240 V AC 50/60 Hz |
| Power Consumption - Printing |
Approximately 680 W (For Taiwan) Approx. 670 W (Except for Taiwan) |
| Power Consumption - Ready |
Approximately 31 W |
| Power Consumption - Sleep |
Approximately 5.9 W |
| Power Consumption - Power Off |
Approximately 0.05 W |
| Noise Level |
54.0 dB (A) |
Supported Operating Systems
| Supported OS |
Windows 10 Server 2012 / 2012 R2 / 2016 / 2019 |
Software and Apps
| Included software |
BRAdmin Professional 4, IPrint&Scan |
| Mobile Apps |
Mobile Connect |
