Overview

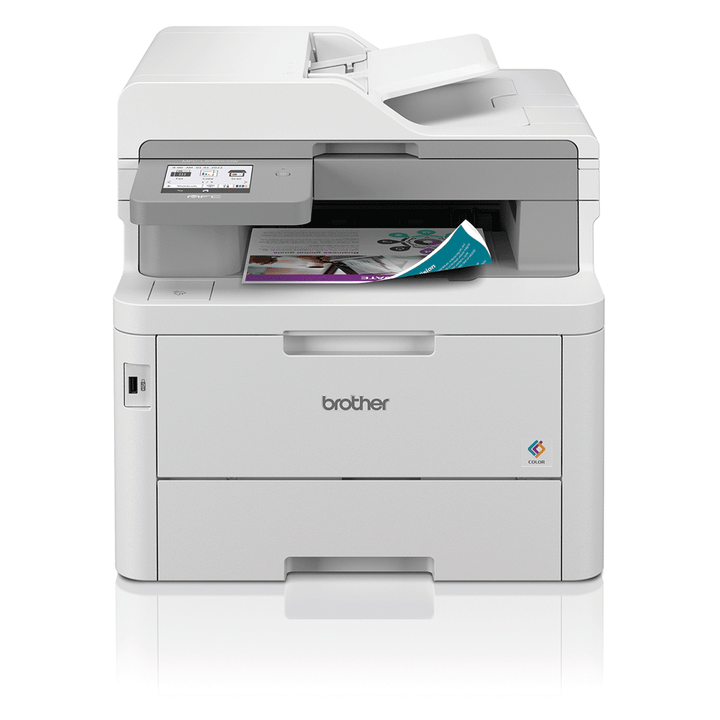

The MFC-L8390CDW has been developed for high print volume to meet the needs of a busy office.
The MFC-L8390CDW is engineered to print quietly whilst delivering speeds up faster than the previous generation. So you can print continuously without distraction and focus on your business.
Both colour and monochromatic documents print at impressive output speeds on various supported types of media, such as up to 30ppm for A4. Have documents ready in hand on time, as productivity is improved thanks to less time spent waiting.
Print and scan your documents from and to mobile devices with ease by using the Brother Mobile Connect application*. Applications like Brother Cloud Apps* and WebConnect* also assist in providing seamless scanning and printing jobs.
* The printer and the application must be on the same network to function properly.
Built-in Wi-Fi/Wireless LAN (2.4GHz/5GHz) and Gigabit Ethernet on the MFC-L8390CDW allow for effortless usage sharing of your machine over the same network. Seamless NFC card authentication helps improve productivity too.
Specifications
Basic Specs
| Functions |
Scan, Copy, Fax |
| Printer Type |
Laser Printer |
| Product Dimensions (Width X Depth X Height) |
410 mm × 462 mm × 401 mm |
| Weight |
21.9 kg |
| Print Speed |
Up to 30 (Mono) / Up to 30 (Colour) ppm (A4) Up to 31 (Mono) / Up to 31 (Colour) ppm (Letter) |
| Paper Type |
Plain Paper, Thin Paper, Thick Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Glossy Paper |
| Paper Size |
A4, Letter, B5 (JIS) ,B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Folio, Mexico Legal, India Legal, 16K (195x270mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch |
Print
| Resolution |
600 x 600 dpi, 2,400 dpi class (600 x 2400) quality |
| 2-Sided (Duplex) - Printing Paper Type |
Plain Paper, Thin Paper, Recycled Paper |
| 2-Sided (Duplex) - Paper Size |
A4 |
Paper handling
| Tray #1 - Maximum Paper Capacity |
Up to 250 sheets of 80 gsm plain paper |
| Multi-purpose Tray - Maximum Paper Capacity |
Up to 30 sheets of 80 gsm plain paper |
| Automatic Document Feeder (ADF) Maximum Paper Capacity |
Up to 50 sheets of 80 gsm plain paper |
| Paper Output |
Up to 150 sheets of 80 gsm plain paper (face-down delivery to the face-down output paper tray) 1 sheet (face up delivery to the face up output tray) |
Copy
| Colour/ Monochrome |
Yes Yes |
| Enlarge/ Reduce |
25 to 400% (in increments of 1%) |
| Resolution |
Up to 600 x 600 dpi |
Scan
| Resolution - Interpolated |
Up to 19200 x 19200 dpi (interpolated) (Windows Only) |
| Resolution - Scanner Glass |
Up to 1200 x 1200 dpi |
| Resolution - Automatic Document Feeder (ADF) |
Up to 600 x 600 dpi |
Fax
| Compatibility |
ITU-T Super G3 |
| Modem Speed |
33.6 Kbps |
| Memory Transmission |
Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG) |
| Out of Paper Reception |
Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG) |
| PC Fax - Sending |
Yes |
| PC Fax - Receiving |
Yes |
Connectivity
| Connectivity |
Hi-Speed USB2.0, Ethernet 10Base-T/100Base-TX/1000Base-T, IEEE 802.11a/b/g/n (Infrastructure Mode), IEEE 802.11a/g/n (Wi-Fi Direct) |
Network
| Wireless Network Security |
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only. |
Display & Memory
| Display Type |
8.76cm (3.5") Colour Touchscreen LCD |
| Memory Capacity |
512 MB |
Operation
| Power Source |
220 - 240 V AC 50/60 Hz |
| Power Consumption - Ready |
Approximately 70 W |
| Power Consumption - Sleep |
Approximately 10 W |
| Power Consumption - Power Off |
Approximately 0.04 W |
| Noise Level |
43 dB(A) |
Supported Operating Systems
| Supported OS |
Windows® Server 2012, Server 2012 R2, 10, Server 2016, Server 2019, Server 2022, 11 |
Software and Apps
| Included software |
BRAdmin Professional 4, IPrint&Scan |
| Mobile Apps |
Mobile Connect |
