Description
Compact Design, Increased Productivity
Compact and user friendly, the LBP6230dn will let you achieve high-quality monochrome prints at up to 1200 x 1200dpi for brilliant text and image documents.
• Print
• Print Speed (A4): Up to 25ppm
• Recommended Monthly Print Volume: 500 - 1,500 pages
• Auto duplex printing
• Wired LAN
Save time and enhance productivity, with high print speed of up to 25ppm (A4) and fast First Print Out Time of 6 seconds.
With Canon UFR II LT print language, the printer takes full advantage of the PC's processing power. UFR II LT effectively removes the need for expensive memory upgrades on the printer.
The Canon all-in-one toner cartridge 326 integrates the photosensitive drum, cleaning unit and toner reservoir in one compact package, saving costs and making cartridge replacements easy.
The printer can be configured to enter sleep mode and auto shutdown after it remains idle for a specified length of time, consuming less energy. With a low Typical Electricity Consumption value of 0.7kWh/week, it is easy to be kind to the environment while saving cost.
With Canon’s latest mobile business solution, you can print documents, photos, web pages and emails all with just one app.
The LBP6230dn is equipped with wired LAN that allows multiple users on an existing network to share the printer. Use the Remote UI to manage and control tasks such as checking printer status, monitoring prints or deleting jobs.
Printing Method: Monochrome Laser Beam Printing
Print Speed:
• Simplex: A4: Up to 25ppm
• Duplex: A4: Up to 7.7spm (sheets per minute)
Print Resolution: 600 x 600dpi
Print Quality with Image Refinement Quality: 1200 x 1200dpi (equivalent) 2400 (equivalent) x 600dpi
Warm-Up Time (From Power On): 10secs. or less
First Printout Time (FPOT): Approx. 6secs.
Recovery Time (From Sleep Mode): Approx. 0.5sec.
Print Language: UFR II LT
Paper Input (Standard): 250 sheets (based on 80g/m2)
Multi-Purpose Tray: 1 sheet (based on 80g/m2)
Paper Output: 100 sheets (face down) (based on 80g/m2)
Paper Sizes:
• Standard: A4, B5, A5, Legal*1, Letter, Executive, 16K, Envelope COM10, Envelope Monarch, Envelope C5, Envelope DL Custom (Width: 76.2 - 216mm x Length 187 - 356mm)
• Multi-Purpose Tray: A4, B5, A5, Legal*1, Letter, Executive, 16K, Envelope COM10, Envelope Monarch, Envelope C5, Envelope DL/ Index card Custom (Width: 76.2 - 216mm x Length 127 - 356mm)
Paper Weight
• Standard: 60 to 163g/m2
• Multi-Purpose Tray: 60 to 163g/m
Paper Type: Plain paper, Heavy Paper, Transparency, Label, Envelope, Index card
Duplex Printing: A4, Letter, Legal*1(60 - 105g/m2)
USB Interface: USB 2.0 High Speed
Network Interface: 10 Base T / 100 Base Tx
Network Protocol
• Print: LPD, RAW, WSD-Print
• Management: SNMPv1, SNMPv3, SLP TCP/IP Application Services: WINS (IPv4), DHCP, BOOTP, RARP, DHCPv6 (IPv6), Auto IP, mDNS, DNS, DDNS
Network Security: IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x
Mobile Print: Canon PRINT Business
Compatible Operating Systems*2: Windows 8.1 (32 / 64-bit), Windows 7 (32 / 64-bit), Windows Server 2012 (32 / 64-bit), Windows Server 2012 R2 (64-bit), Windows Server 2008 (32 / 64-bit), Windows Server 2008 R2 (64-bit), Mac OS 10.7.x - 10.9*3, Linux*3, Citrix (FR2 and later)
Operation Panel: 4 LED indicators, 3 operation keys
Device Memory: 64MB
Dimensions (W x D x H): 379 x 293 x 243mm
Weight: Approx. 7.0kg
Noise Level*4
• During Operation: Sound Power Level: 6.77B or less. Sound Pressure Level: Approx. 52dB
• During Standby: Sound Power Level: Inaudible*5. Sound Pressure Level: Inaudible*5
Maximum Power Consumption: 1100W or less
Average Power Consumption
• During Operation: Approx. 420W
• During Standby: Approx. 1.4W
• During Sleep: Approx. 0.9W
TEC (Typical Electricity Consumption): 0.7kWh/week
Operating Environment
• Temperature: 10 ~ 30°C
• Humidity: 20 to 80% RH (no condensation)
Power Requirement: 220 - 240V (±10%), 50 / 60Hz (±2Hz)
Toner Cartridge*6: Cartridge 326: 2,100 pages (Bundled Cartridge: 900 pages)
Monthly Duty Cycle*7: Up to 8,000 pages
Recommended Monthly Print Volume: 500 - 1,500 pages
Compact and user friendly, the LBP6230dn will let you achieve high-quality monochrome prints at up to 1200 x 1200dpi for brilliant text and image documents.
• Print
• Print Speed (A4): Up to 25ppm
• Recommended Monthly Print Volume: 500 - 1,500 pages
• Auto duplex printing
• Wired LAN
High print speed
Save time and enhance productivity, with high print speed of up to 25ppm (A4) and fast First Print Out Time of 6 seconds.
UFR II LT
With Canon UFR II LT print language, the printer takes full advantage of the PC's processing power. UFR II LT effectively removes the need for expensive memory upgrades on the printer.
Minimal Maintenance
The Canon all-in-one toner cartridge 326 integrates the photosensitive drum, cleaning unit and toner reservoir in one compact package, saving costs and making cartridge replacements easy.
Low Energy Consumption
The printer can be configured to enter sleep mode and auto shutdown after it remains idle for a specified length of time, consuming less energy. With a low Typical Electricity Consumption value of 0.7kWh/week, it is easy to be kind to the environment while saving cost.
Mobile Printing Solutions
With Canon’s latest mobile business solution, you can print documents, photos, web pages and emails all with just one app.
Network ready
The LBP6230dn is equipped with wired LAN that allows multiple users on an existing network to share the printer. Use the Remote UI to manage and control tasks such as checking printer status, monitoring prints or deleting jobs.

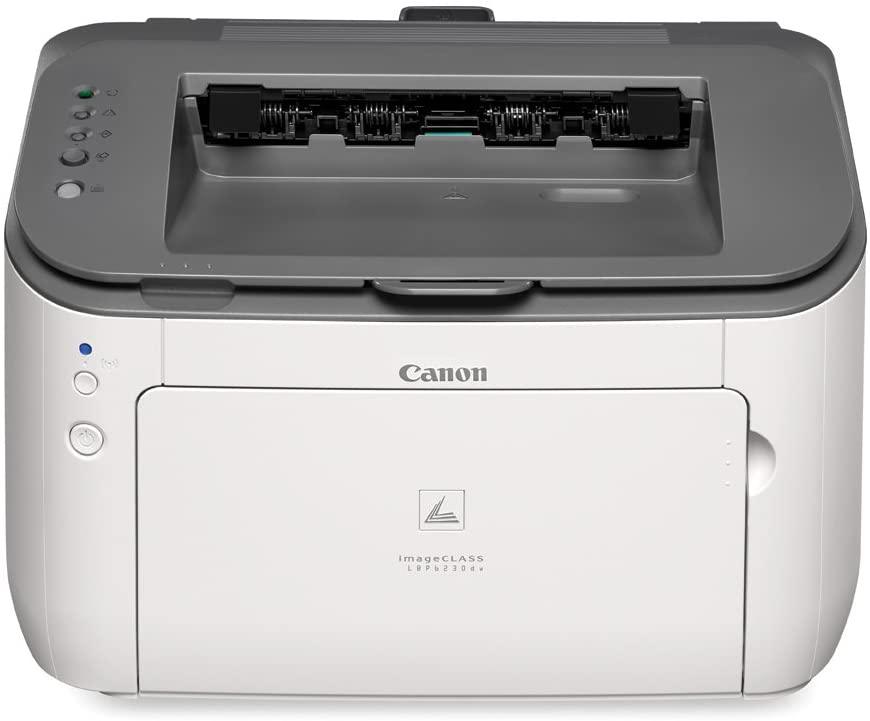

Canon Image CLASS LBP6230dw Specifications
Printing Method: Monochrome Laser Beam Printing
Print Speed:
• Simplex: A4: Up to 25ppm
• Duplex: A4: Up to 7.7spm (sheets per minute)
Print Resolution: 600 x 600dpi
Print Quality with Image Refinement Quality: 1200 x 1200dpi (equivalent) 2400 (equivalent) x 600dpi
Warm-Up Time (From Power On): 10secs. or less
First Printout Time (FPOT): Approx. 6secs.
Recovery Time (From Sleep Mode): Approx. 0.5sec.
Print Language: UFR II LT
Paper Input (Standard): 250 sheets (based on 80g/m2)
Multi-Purpose Tray: 1 sheet (based on 80g/m2)
Paper Output: 100 sheets (face down) (based on 80g/m2)
Paper Sizes:
• Standard: A4, B5, A5, Legal*1, Letter, Executive, 16K, Envelope COM10, Envelope Monarch, Envelope C5, Envelope DL Custom (Width: 76.2 - 216mm x Length 187 - 356mm)
• Multi-Purpose Tray: A4, B5, A5, Legal*1, Letter, Executive, 16K, Envelope COM10, Envelope Monarch, Envelope C5, Envelope DL/ Index card Custom (Width: 76.2 - 216mm x Length 127 - 356mm)
Paper Weight
• Standard: 60 to 163g/m2
• Multi-Purpose Tray: 60 to 163g/m
Paper Type: Plain paper, Heavy Paper, Transparency, Label, Envelope, Index card
Duplex Printing: A4, Letter, Legal*1(60 - 105g/m2)
USB Interface: USB 2.0 High Speed
Network Interface: 10 Base T / 100 Base Tx
Network Protocol
• Print: LPD, RAW, WSD-Print
• Management: SNMPv1, SNMPv3, SLP TCP/IP Application Services: WINS (IPv4), DHCP, BOOTP, RARP, DHCPv6 (IPv6), Auto IP, mDNS, DNS, DDNS
Network Security: IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x
Mobile Print: Canon PRINT Business
Compatible Operating Systems*2: Windows 8.1 (32 / 64-bit), Windows 7 (32 / 64-bit), Windows Server 2012 (32 / 64-bit), Windows Server 2012 R2 (64-bit), Windows Server 2008 (32 / 64-bit), Windows Server 2008 R2 (64-bit), Mac OS 10.7.x - 10.9*3, Linux*3, Citrix (FR2 and later)
Operation Panel: 4 LED indicators, 3 operation keys
Device Memory: 64MB
Dimensions (W x D x H): 379 x 293 x 243mm
Weight: Approx. 7.0kg
Noise Level*4
• During Operation: Sound Power Level: 6.77B or less. Sound Pressure Level: Approx. 52dB
• During Standby: Sound Power Level: Inaudible*5. Sound Pressure Level: Inaudible*5
Maximum Power Consumption: 1100W or less
Average Power Consumption
• During Operation: Approx. 420W
• During Standby: Approx. 1.4W
• During Sleep: Approx. 0.9W
TEC (Typical Electricity Consumption): 0.7kWh/week
Operating Environment
• Temperature: 10 ~ 30°C
• Humidity: 20 to 80% RH (no condensation)
Power Requirement: 220 - 240V (±10%), 50 / 60Hz (±2Hz)
Toner Cartridge*6: Cartridge 326: 2,100 pages (Bundled Cartridge: 900 pages)
Monthly Duty Cycle*7: Up to 8,000 pages
Recommended Monthly Print Volume: 500 - 1,500 pages
