JBL Cinema SB510 3.1 Channel Soundbar with Built-in Subwoofer – 200W Dolby Audio
- Compact all-in-one 3.1 channel soundbar with built-in subwoofer for 200W powerful Dolby Audio and deep bass.
- Dedicated center channel for crystal-clear dialogue; easy setup via HDMI ARC or optical.
- Bluetooth 5.3 for wireless streaming; supports MP3 playback via USB (US version).
- Fits any room: 950mm wide, 3.5kg; frequency response 55Hz-20kHz.

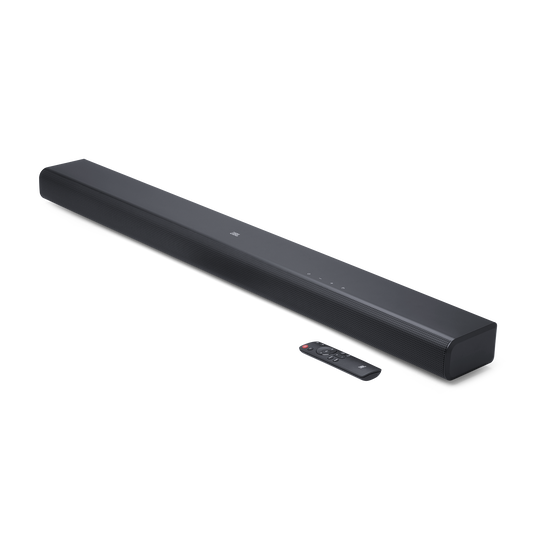

The JBL Cinema SB510 is a versatile and compact 3.1 channel all-in-one soundbar designed to elevate your home entertainment experience with epic sound in a hassle-free package. Featuring a built-in subwoofer, it delivers a total of 200 watts of powerful Dolby Audio, combining 150W from the soundbar and 50W from the subwoofer for immersive audio with deep, rumbling bass. The dedicated center channel driver ensures that TV shows, movies, and dialogue remain crystal clear, even in action-packed scenes, while the three racetrack drivers (45 x 80mm each) and the built-in subwoofer transducer (70 x 88mm) provide a wide frequency response from 55Hz to 20kHz (-10dB) for balanced highs and lows.
Setup is incredibly simple with one-cable HDMI ARC or optical connections, making it compatible with most modern TVs. For added convenience, Bluetooth 5.3 connectivity allows seamless wireless music streaming from any device, supporting profiles like A2DP 1.3 and AVRCP 1.6, with a transmitter frequency range of 2400 MHz to 2483.5 MHz and max power under 10 dBm (EIRP). The soundbar also includes a USB port (Type A, 5V DC, 0.5A) for MP3 playback in the US version (service-only in other regions), compatible with MPEG 1/2/2.5 Layer 2/3 codecs and sampling rates from 16-48kHz.
Measuring just 950 x 67 x 105 mm (37.4" x 2.6" x 4.1") and weighing 3.5kg (7.7 lbs), this soundbar's sleek, compact design fits neatly into any living space without overwhelming your setup. It operates efficiently with a power supply of 100-240V AC (~50/60Hz) and standby power under 0.5W, ensuring energy savings. The operating temperature range is 0°C to 45°C, making it reliable in various environments.

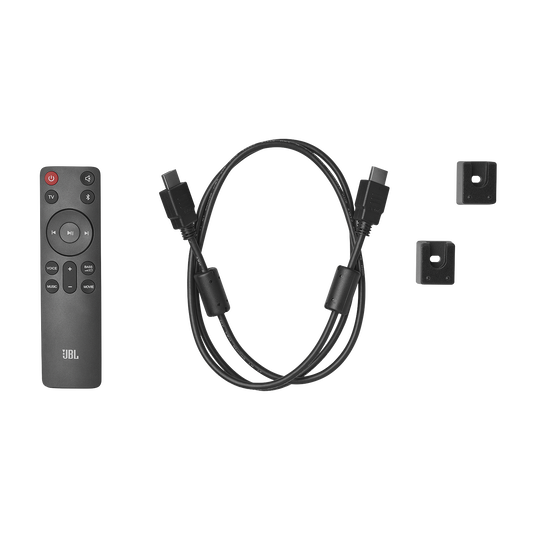

Audio inputs include one optical port, Bluetooth, and USB, while the system supports multiple filters like media, images, videos, and more for enhanced versatility. The package includes everything you need: the soundbar, remote control with batteries, power cables (up to 4 depending on region), HDMI cable, wall-mount bracket kit with screws, quick start guide, warranty card, and safety sheet. Packaged dimensions are 1112 x 116 x 164 mm (43.8" x 4.6" x 6.5") with a total weight of 5.0kg (11.0 lbs).
Whether you're streaming music, watching films, or enjoying TV, the JBL Cinema SB510 offers a perfect blend of power, clarity, and convenience in a single, elegant unit.
