Overview

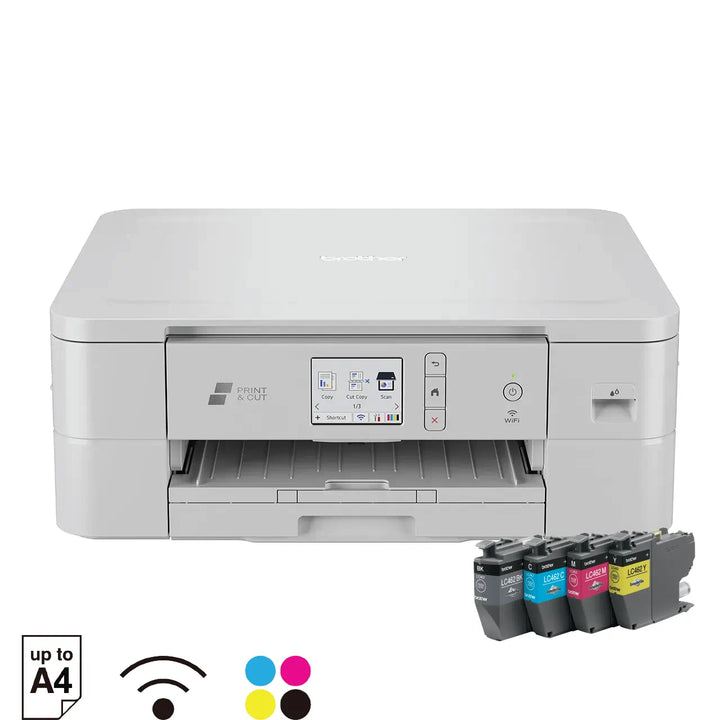

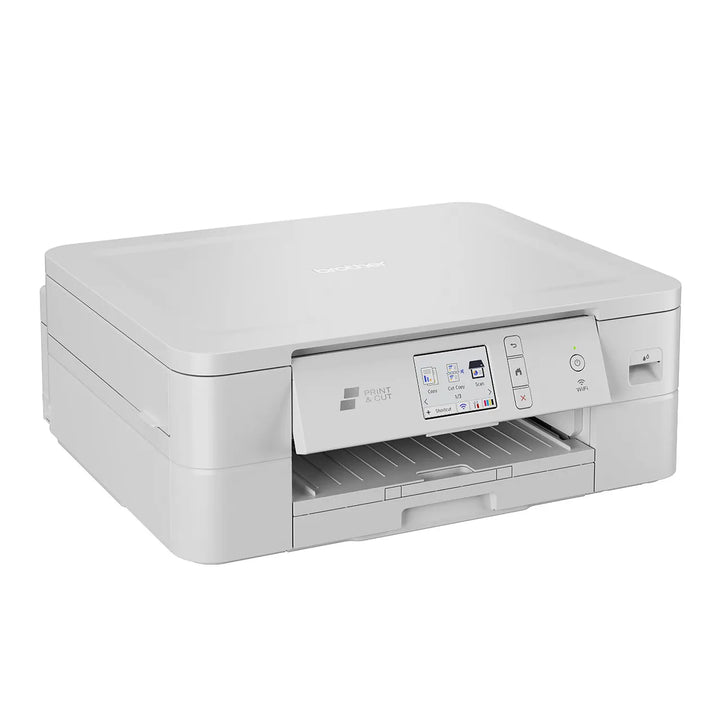

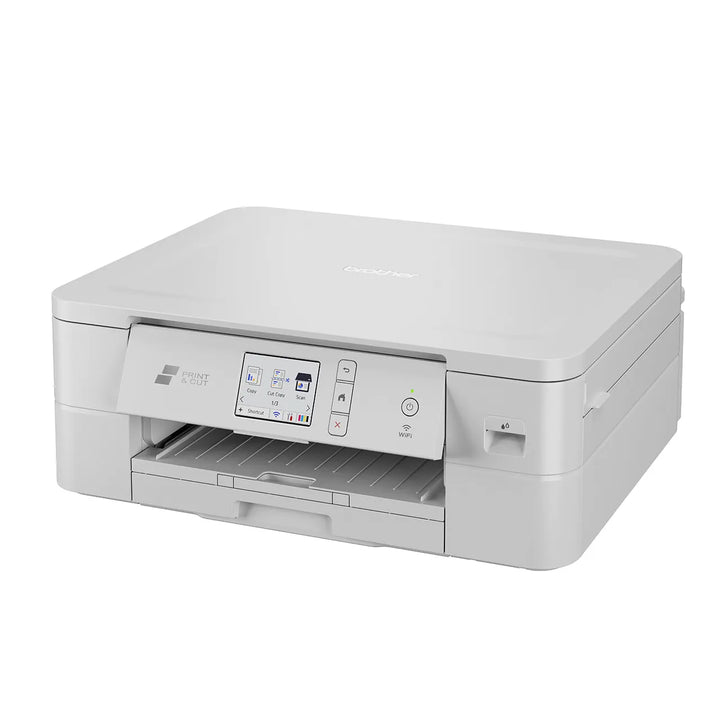

Introducing one of the first of its kind in the world (based on Brother Product line-up and research done by Brother), DCP-J1700DW, smart cutter printer!
With automatic cut function, it allows you to print and cut A4 to A5 paper size easily.
Enjoy crisp colour prints If vivid colour documents is what you need, look no further. With resolutions of up to 1,200 x 6,000 dpi your documents will give you that ‘wow’ factor every time. You can even print photographs directly onto photograph paper. no cutting required.
Print from anywhere at home Each machine within the range boasts wireless connection and mobile compatibility, so you can print on the go quickly and easily. Additionally, anyone, such as a guest, can easily connect and print if a quick task is required.
Compact, yet feature rich If you think you need a large, bulky device to enjoy a high specification multifunction device think again. All at approximately (w)400 x (d)343 x (h)151mm these compact machines come with a long list of useful features such as web connection, online scan functions, touch screen displays and so much more.
Flexible and simple to use From the moment you unbox these devices to daily use these devices are incredibly simple to use. After a quick set up you can manage tasks via the colour LCD screens, or even via new app, Brother Mobile Connect, it’s sure to improve your flexibility help you multitask.
Specifications
Basic Specs
| Functions |
Print, Scan, Copy |
| Printer Type |
Inkjet Printer |
| Product Dimensions (Width X Depth X Height) |
400 mm × 343 mm × 151 mm |
| Weight |
7 kg |
| Print Speed |
Up to 17.0 (Mono) / 16.5 (Colour) ipm FPOT: Up to 6.0 (Mono) / 6.5 (Col) Seconds |
| Paper Type |
Plain Paper, Inkjet Paper (coated paper), Glossy Paper, Recycled Paper |
| Paper Size |
A4, A5, A6, B5, B6, C5 Envelope, Com-10, DL Envelope, Executive, Indexcard(13x20cm/5x8"), Letter, Monarch, Photo-2L(13x18cm/5x7"), Photo-L(9x13cm/3.5x5"), Photo(10x15cm/4x6") (B5 and B6 size paper are supported only in some countries.) Cut Print : A4 |
| Maximum Paper Capacity |
Up to 150 sheets of 80 gsm plain paper |
Print
| Resolution |
Up to 1200 × 6000 dpi |
| Borderless |
A4, Letter, A6, Photo(10x15cm/4x6"), Photo-L(9x13cm/3.5x5"), Photo-2L(13x18cm/5x7"), Indexcard(13x20cm/5x8") |
| 2-Sided (Duplex) - Printing Paper Type |
Plain Paper, Recycled Paper |
| 2-Sided (Duplex) - Paper Size |
A4, Letter, Executive, A5, B5 (JIS) (B5 size paper is supported only in some countries.) Cut Print : A4 |
Paper handling
| Tray #1 - Paper Type |
A4, LTR, EXE, A5, A6, Photo(102x152mm/4x6"), Indexcard(127x203mm/5x8"), Photo-2L(127x178mm/5x7"), C5 Envelope, Com-10, DL Envelope, Monarch Cut: A4 |
| Tray #1 - Maximum Paper Capacity |
Up to 150 sheets of 80 gsm plain paper |
| Paper Output |
Up to 50 sheets of 80 gsm Plain Paper |
Copy
| Colour/ Monochrome |
Yes Yes |
| Multiple Copies |
Stacks/Sorts up to 99 pages |
| Enlarge/ Reduce |
25% to 400% (in increments of 1%) |
| Resolution |
Print: Up to 1,200 x 2,400 dpi Scan(Color): Up to 1,200 x 600 dpi Scan(Mono): Up to 1,200 x 1,200 dpi |
| 2-Sided (Duplex) - Paper Size |
Letter, A4, A5 |
Scan
| Resolution - Interpolated |
Up to 19,200 × 19,200 dpi (interpolated) (Windows Only) |
| Resolution - Scanner Glass |
Up to 1200 × 2400 dpi |
Connectivity
| Connectivity |
Hi-Speed USB2.0, IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct) |
Network
| Wireless Network Security |
SSID (32 chr), WEP 64/128bit, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES) |
| Wireless Setup Support Utility - WPS |
Yes |
Display & Memory
| Display Type |
2.7" TFT Color LCD |
| Memory Capacity |
512 MB |
Operation
| Power Source |
AC 220 to 240 V 50/60 Hz |
| Power Consumption - Ready |
Approx. 3 W |
| Power Consumption - Sleep |
Approx. 0.8 W |
| Power Consumption - Power Off |
Approx. 0.2 W |
| Noise Level |
Printing : 52.5 dB(A) Copying (using the scanner glass) : 52.5dB(A) (Noise depends on printing conditions.) |
Software and Apps
| Included software |
BRAdmin Professional 4, IPrint&Scan |
| Mobile Apps |
Mobile Connect |
