Overview

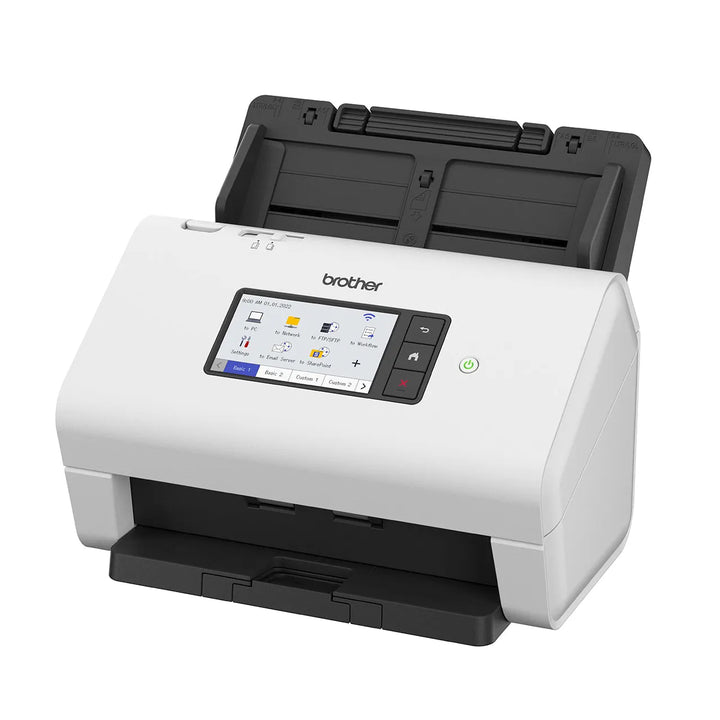

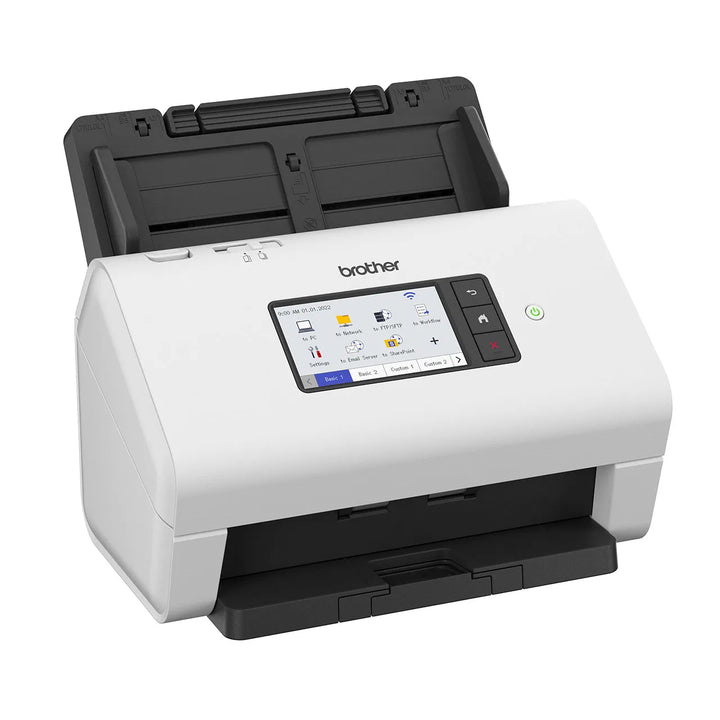

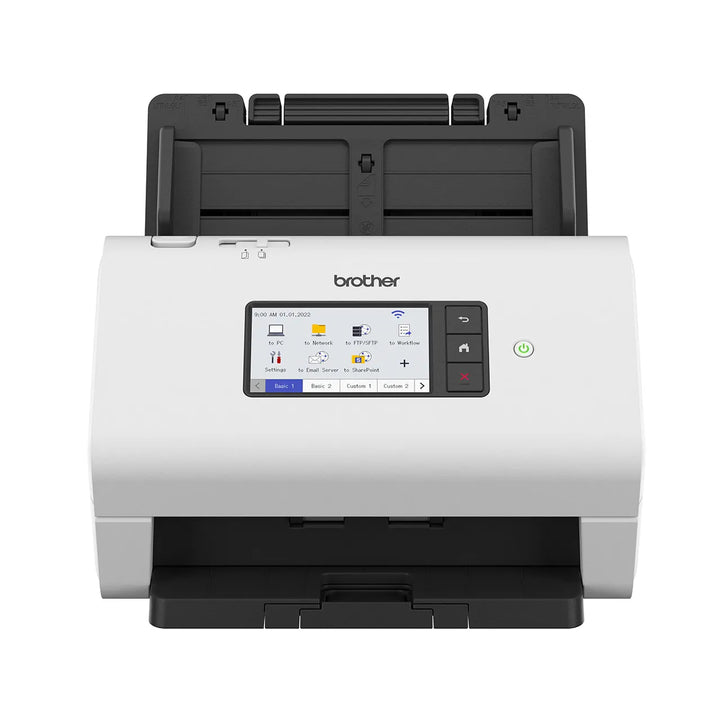

High-speed network desktop scanner ADS-4900W
Expertly designed with businesses in mind, our scanners help to streamline business processes whilst providing an effortless, user-friendly experience. They enable you to intelligently capture and optimize the contents of your documents and easily collaborate with colleagues.
High-volume scanning Built for demanding, high-volume workplaces, Brother’s range of Kofax certified desktop scanners allow busy departments to batch scan and archive a larger number and wider variety of documents quickly and easily. From batch scanning large volumes of very thick or thin paper documents to multi-page, mixed batch media, through to embossed plastic cards, all can be scanned continually with the help of a Separation Switch.
Ultrasonic Multifeed Sensor The Ultrasonic Multifeed Sensor uses sound waves to identify potential misfeeds and alerts the scanner user to intervene. This reduces the risk of damaged documents and lost data.
Automatically route documents with barcodes Reduce the labor-intensive task of scanning several documents, saving and then renaming files. Barcode Utility enables documents that have a barcode to be scanned and saved to the required location, automating the separation of a batch of documents and routing each individual file to the designated folder on your network.
Easy Maintenance Reduced maintenance costs and downtime due to the high-volume scanning capacity and reliable roller mechanisms. Easy access to the paper path allows you to clear any paper jams and the CIS Cleaning Alarm reminds you to clean the unit when required, without having to call a service center.
Specifications
Basic Specs
| Scanning Speed | 60 ppm |
| Document Size - Multiple Sheets - Width | 50.8 mm to 215.9 mm |
| Document Size - Multiple Sheets - Length | 50.8 mm to 355.6 mm |
| Document Size - Single Sheet - Width | 50.8 mm to 215.9 mm |
| Colour / Monochrome | Yes / Yes |
| 2-Sided (Duplex) Scan | Yes |
| Colour Depth - Input | 48-bit colour processing |
| Colour Depth - Output | 24-bit colour processing |
| Resolution - Optical | Up to 600 dpi × 600 dpi |
| Resolution - Interpolated | Up to 1,200 dpi × 1,200 dpi |
| Document Scanning Width / Length | Up to 215.9 mm |
| Product Dimensions (Width X Depth X Height) | 300 mm × 236 mm × 247 mm |
| Weight | 3.37 kg |
| ADF (Automatic Document Feeder) | Up to 100 sheets (Paper: 20 lb (80 g/m²) A4/Letter size) |
| Memory Capacity | 1024MB |
Connectivity
| Connectivity | Super Speed USB 3.0, Ethernet 10Base-T/100Base-TX, Wireless LAN IEEE 802.11 a/b/g/n (Infrastructure Mode), IEEE 802.11 a/g/n (Wi-Fi Direct) |
Network
| Wireless Network Security | WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3 |
| Setup Support Utility | WPS WLAN Assistant |
Display Type
| Touchscreen LCD | 4.3 in. (109.2 mm) TFT colour LCD screen |
Operation
| Power Source | AC: 100-240 V, 50/60 Hz |
| Power Consumption - Scanning | Approx. 34W |
| Power Consumption - Ready | Approx. 7.7W |
| Power Consumption - Power Saving / Deep Sleep | Approx. 1.7W |
| Power Consumption - Power OFF | Approx. 0.1W |
| Temperature Operating | 5°C to 35°C |
| Humidity - Operating | 20% to 80% |
| Humidity - Storage | 10% to 90% |
Compliance
| TWAIN Compliant - Windows® | Windows Server 2012 / Windows Server 2012 R2 / Windows Server 2016 / Windows Server 2019 |
| TWAIN Compliant - Macintosh | macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x |
| WIA Compliant - Windows® | Windows 7 (SP1) / Windows 8.1 / Windows 10 |
| ICA Compliant - Macintosh | macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x |
| ISIS™ Compliant - Windows® | Windows 7 (SP1) / Windows 8.1 / Windows 10 |
